Max. Cut-Off Wire Diameter: 9.5mm (3/8") @ 45 kg/mm2 / 8mm (5/16") @ 70 kg/mm2
Max. Cut-Off Length: 80mm
Max. Shank Length: 80mm
Max. Transfer Length: 60mm
1st Die Kickout: 115mm
2nd Die Kickout: 60mm
2nd PKO Stroke: 30mm
3rd PKO Stroke: 10mm
Output: 50 - 120 PPM
Equipped With:
Pay-off
Bramkamp ECO 600 Process Monitor
PKO

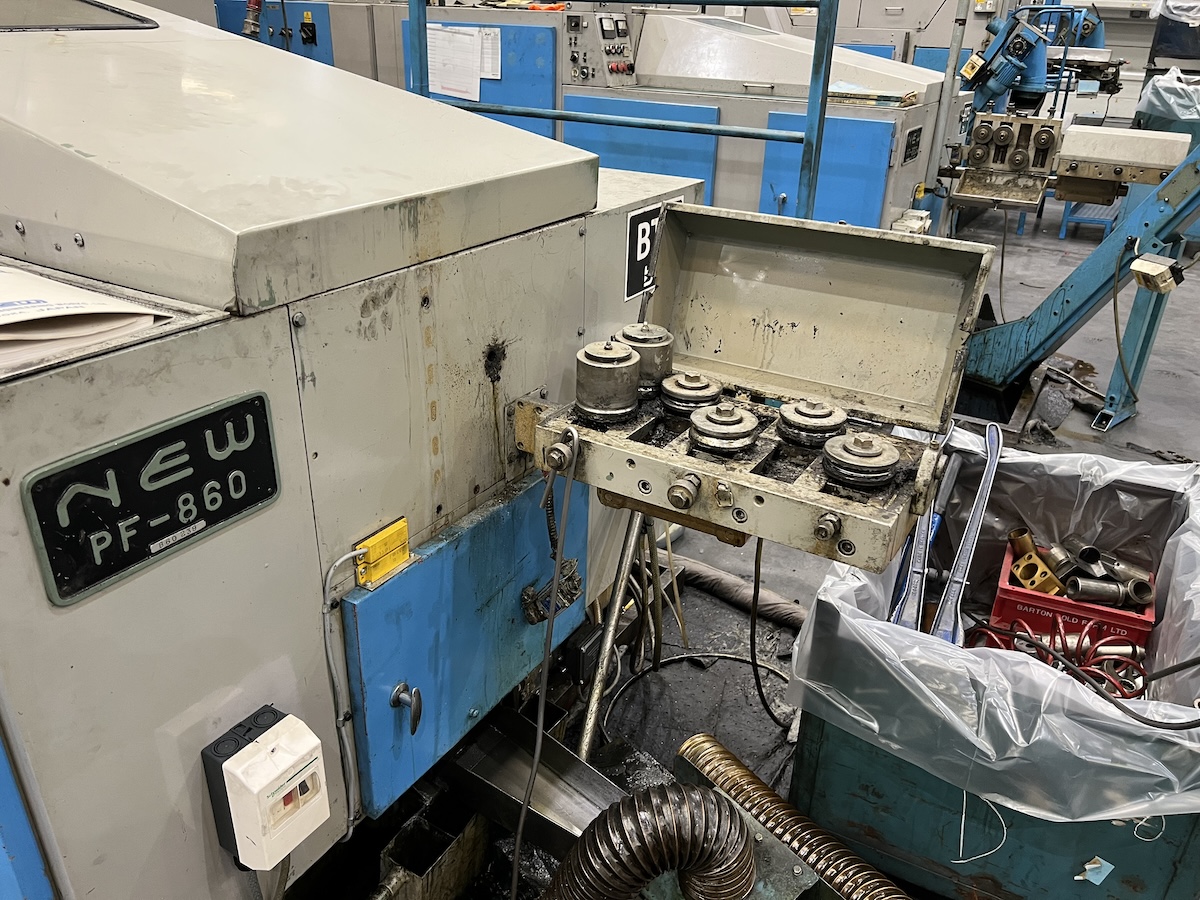

Single Plane Wire Straightener

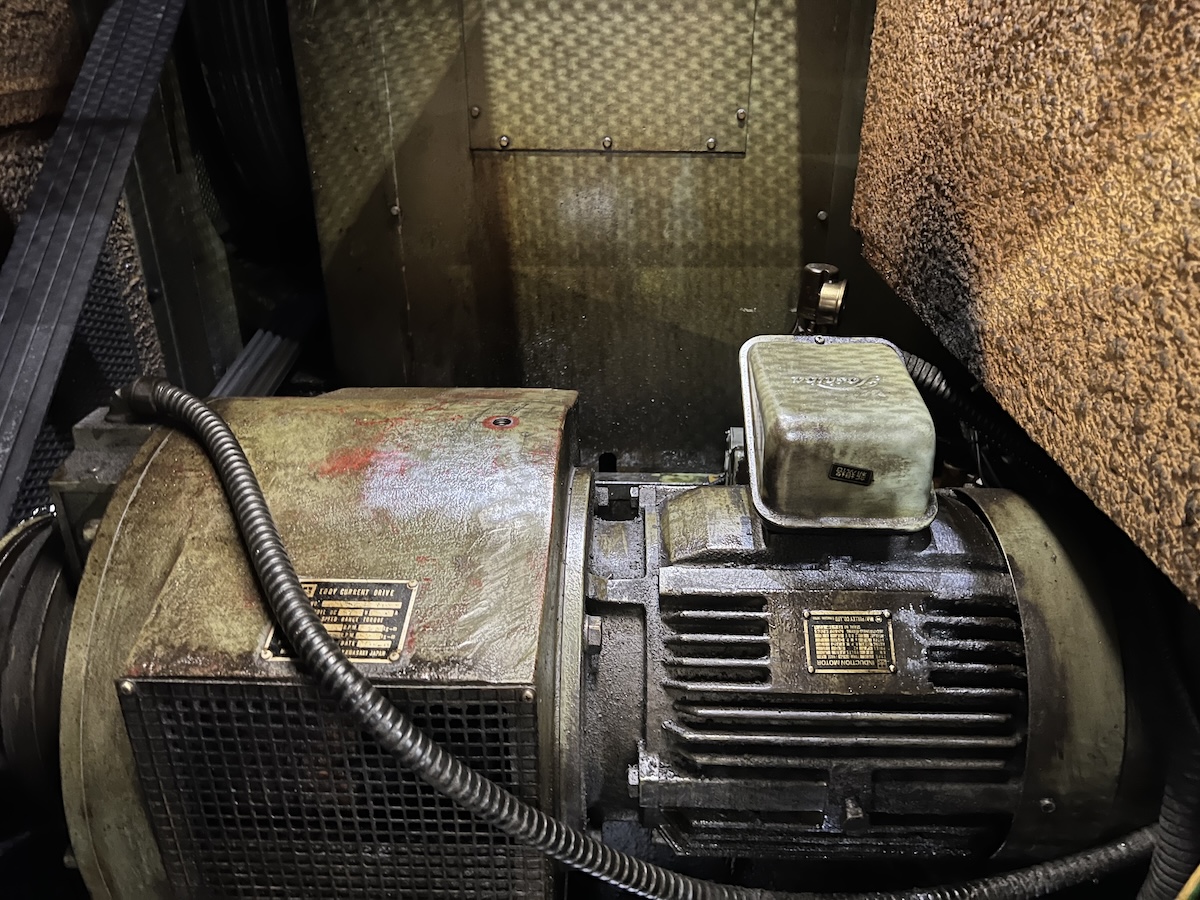

Eddy Current Variable Speed Drive

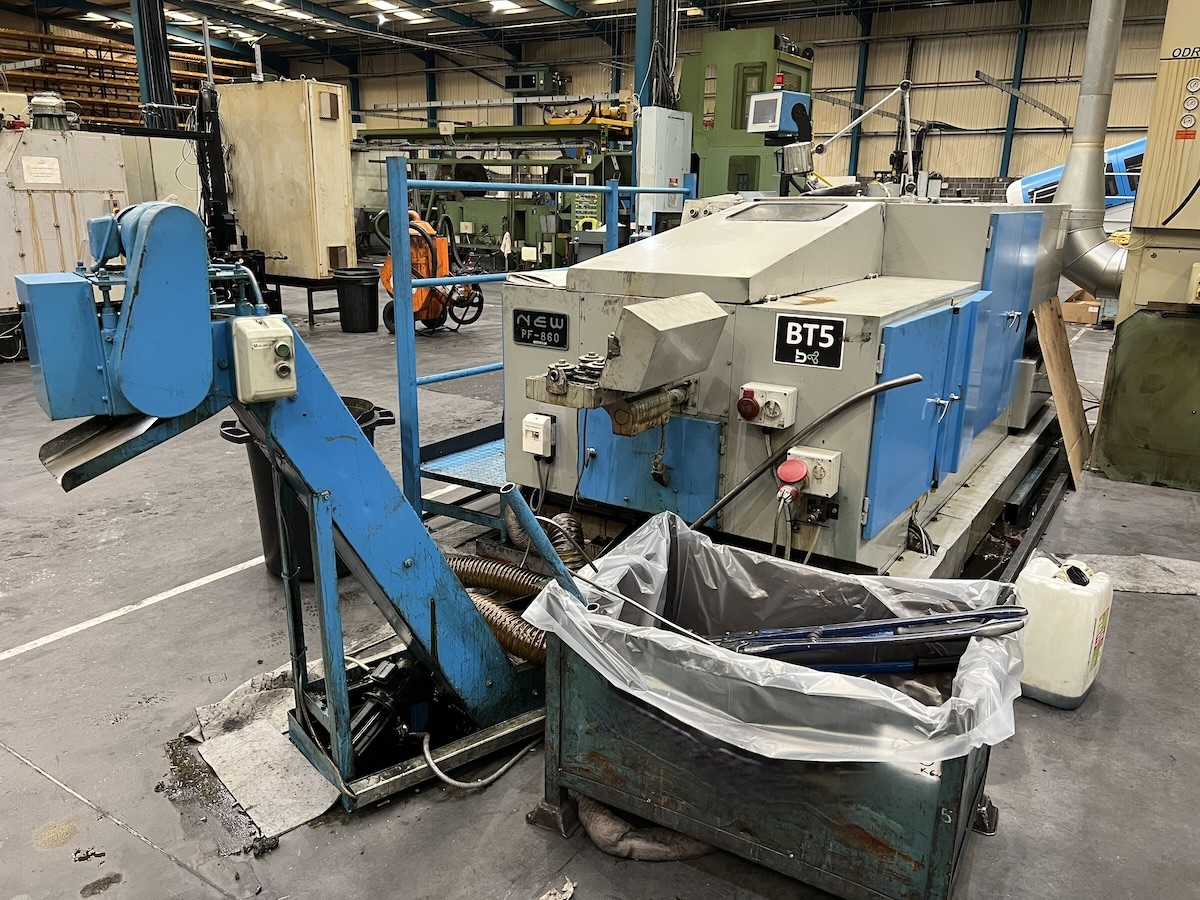

Parts Conveyor
