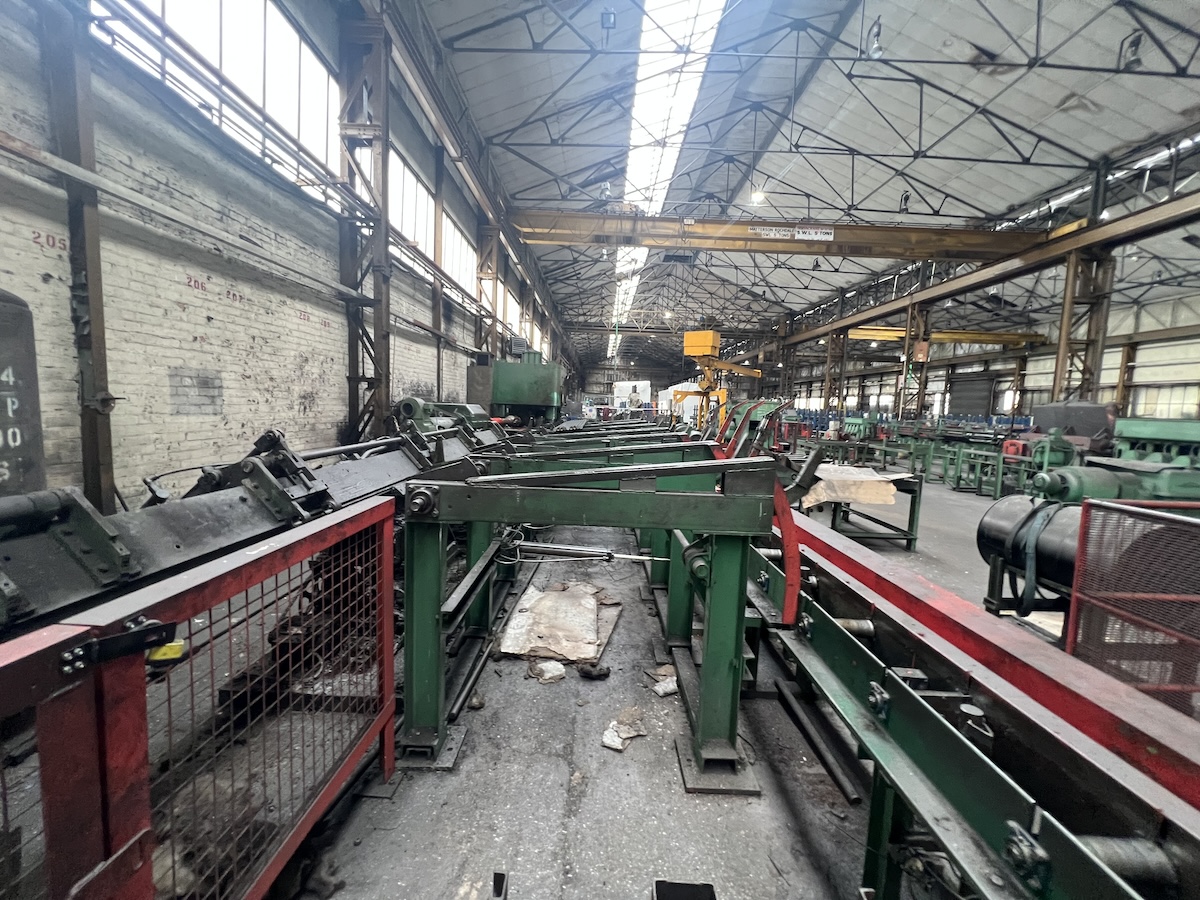

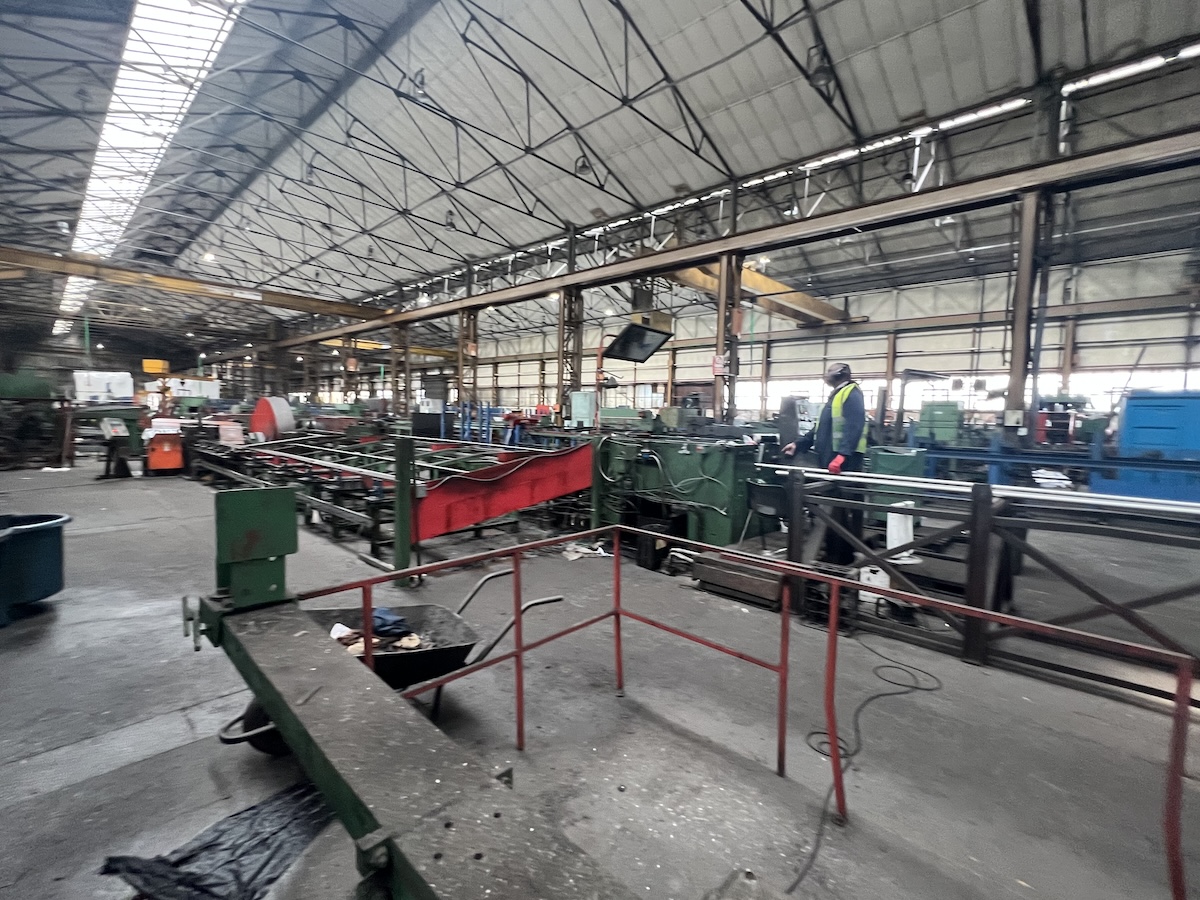

Bar Drawing, Straightening, Sawing & Chamfering Line

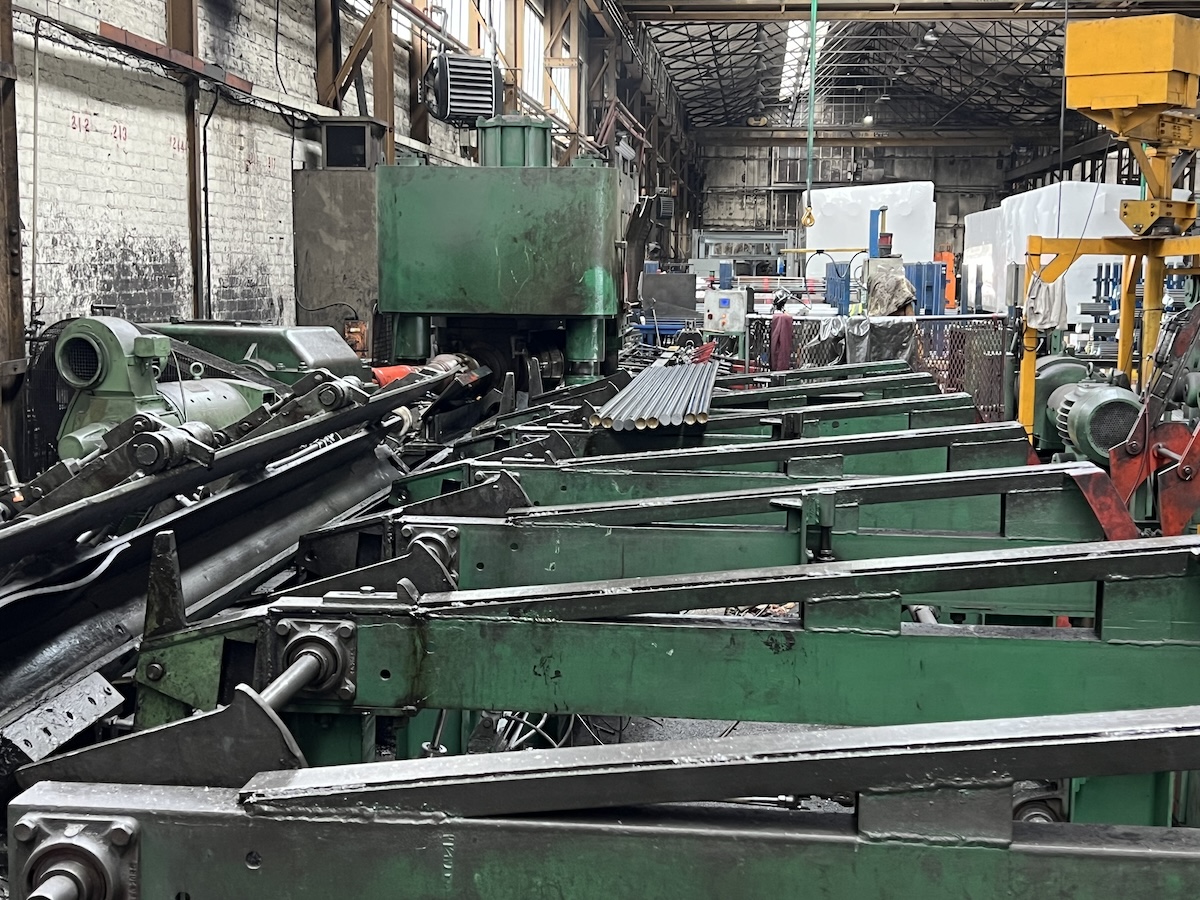

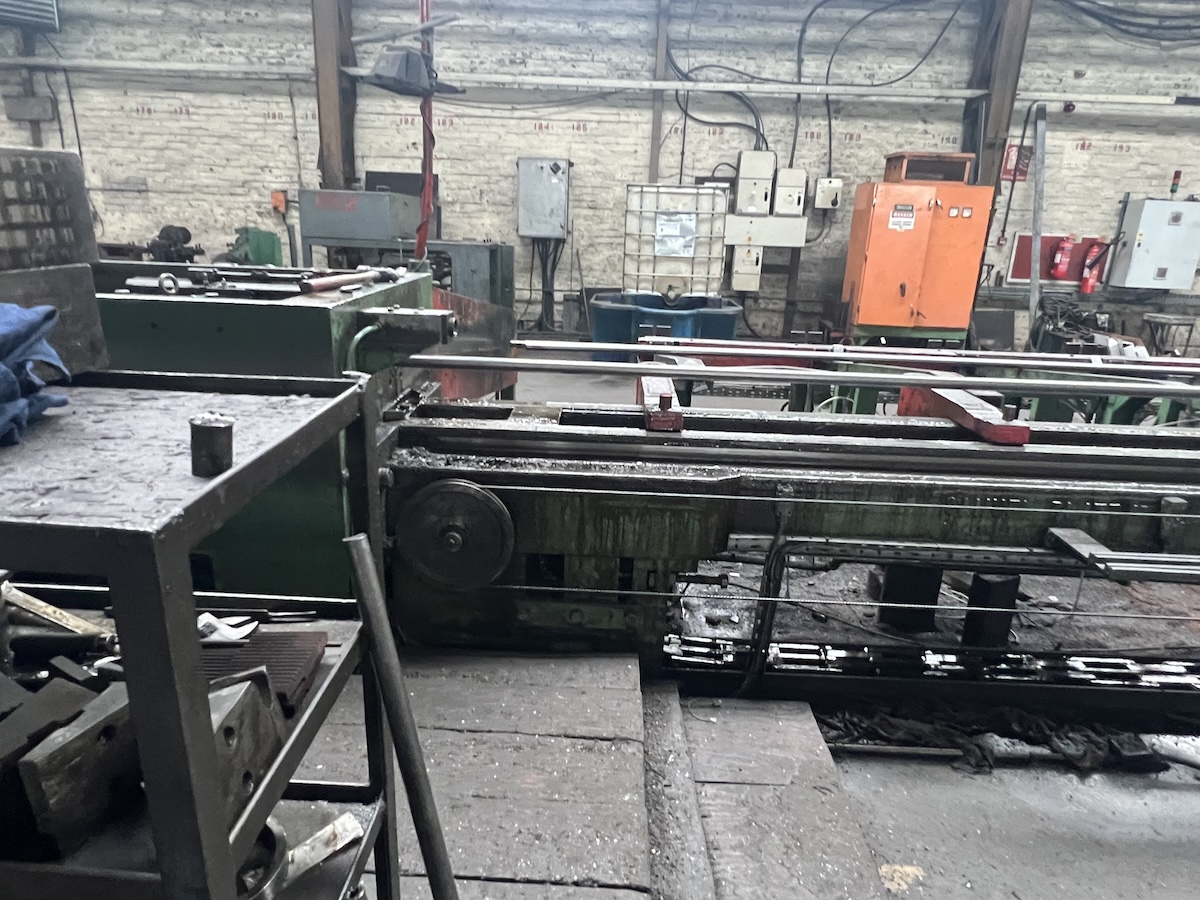

PLATT SINGLE PULL MECHANICAL DRAWBENCH

Drawing Force: 40 Tons

Push Pointer: 80 Tons

Max. Round Bar Diameter: 76.2mm (3")

Dies for Hexagons and Squares

Main Drive: 75 HP

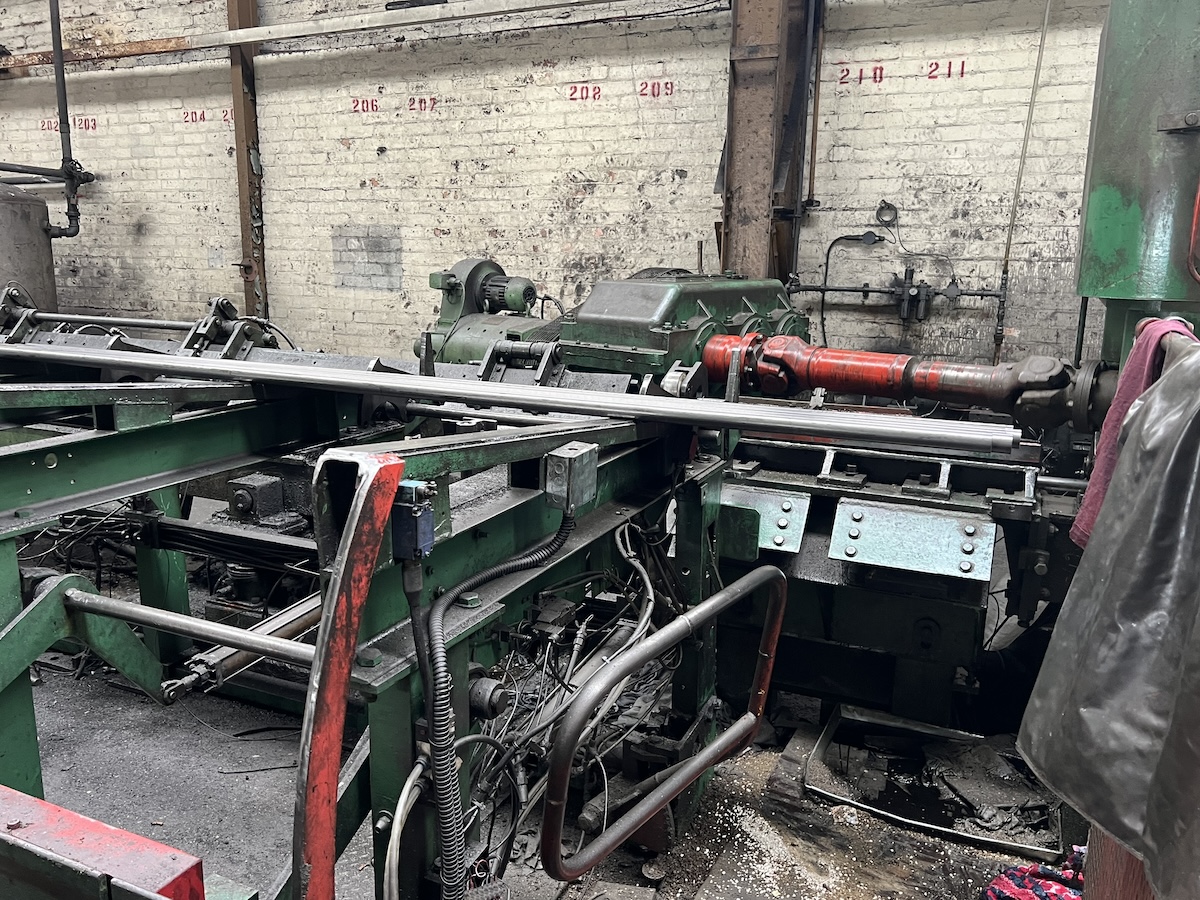

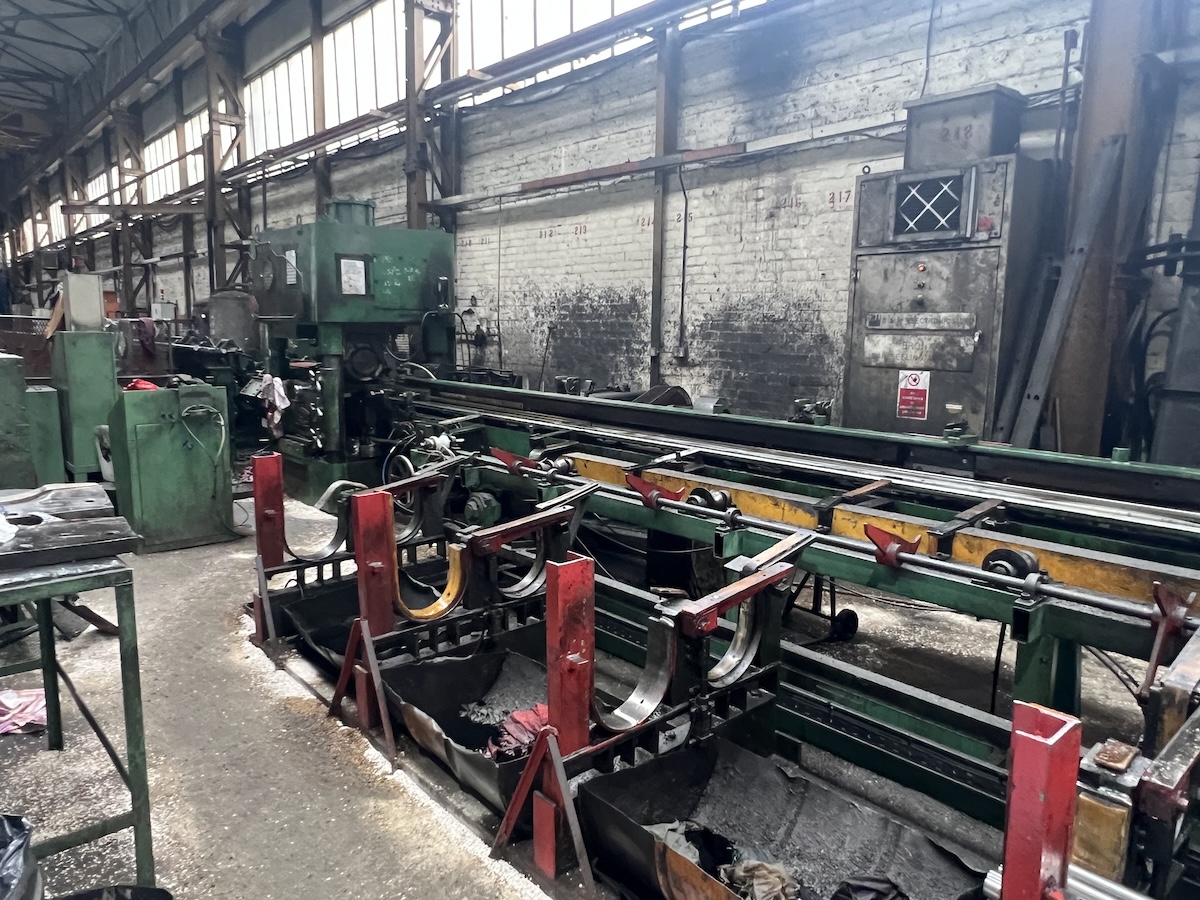

BRONX TWO-ROLL VERTICAL BAR STRAIGHTENER

Model: PBRV-5

Bar Diameter Range:

45/55 kg/mm²     Ø16 - 89mm      (5/8 – 3-1/2”)

55/70 kg/mm²     Ø16 - 75mm      (5/8 – 3”)

70/85 kg/mm²     Ø16 - 67mm      (5/8 – 2-5/8”)

85/100 kg/mm²   Ø16 - 63mm      (5/8 – 2-1/2”)

100/115 kg/mm²  Ø16 - 54mm      (5/8 – 2-1/8”)

115/130 kg/mm²   Ø16 - 41mm      (5/8 – 1-5/8”)

‍Drive: (2) 60 HP

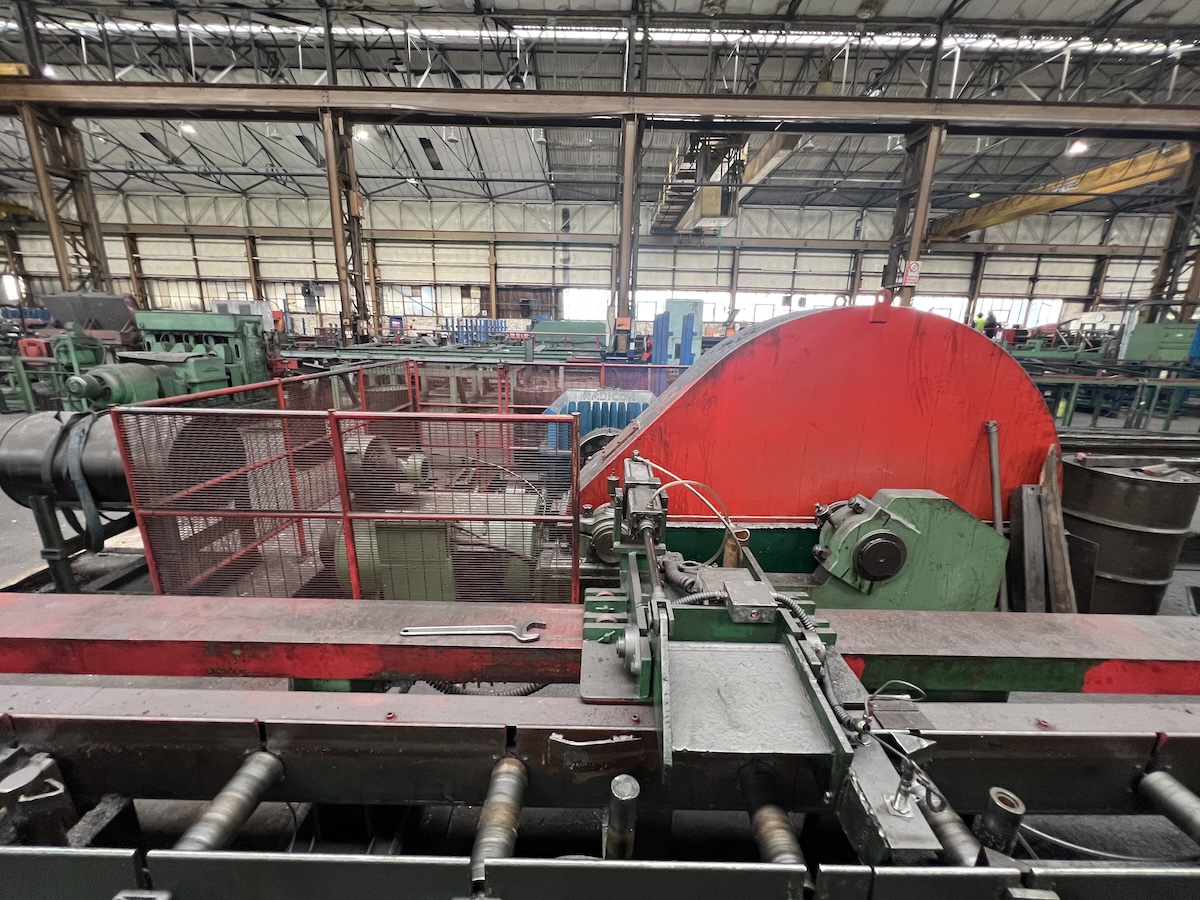

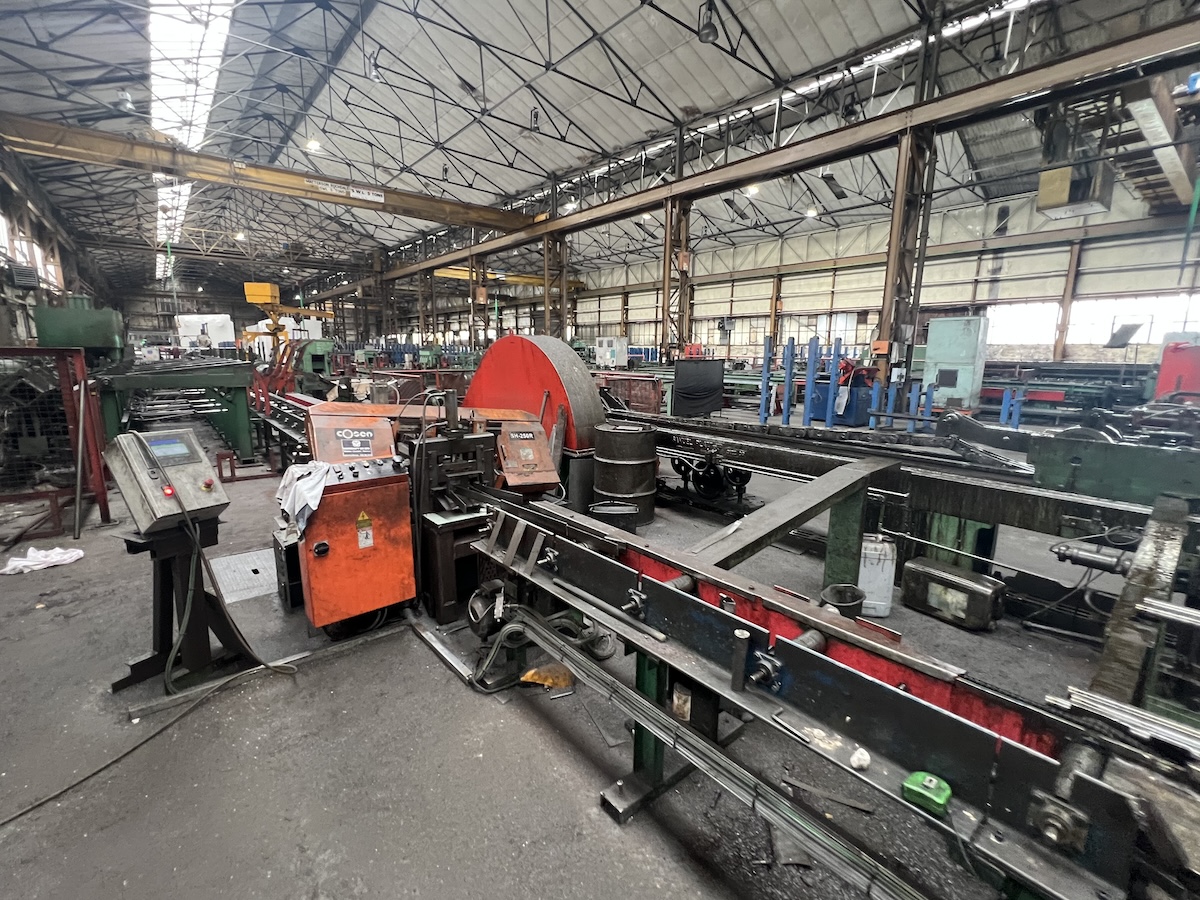

SAW

COSEN SH-250R

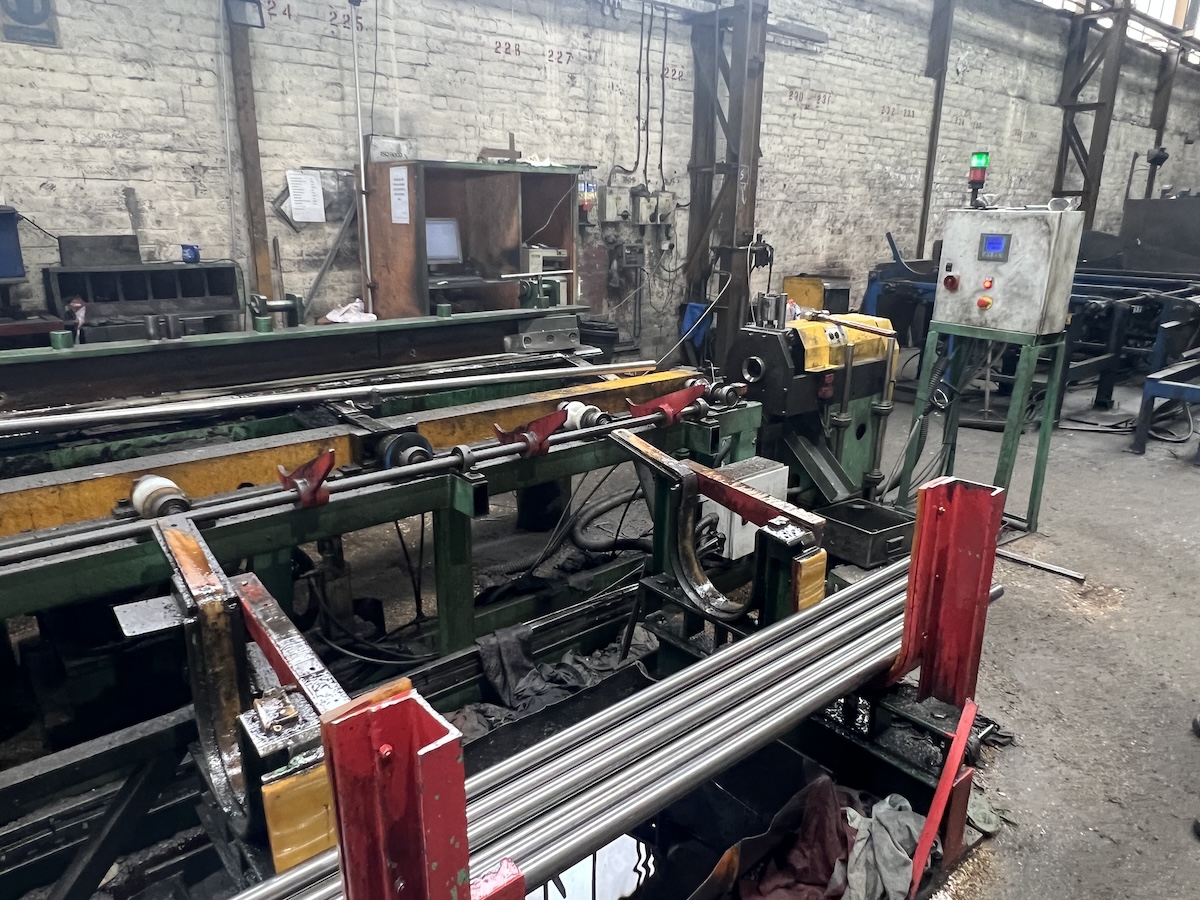

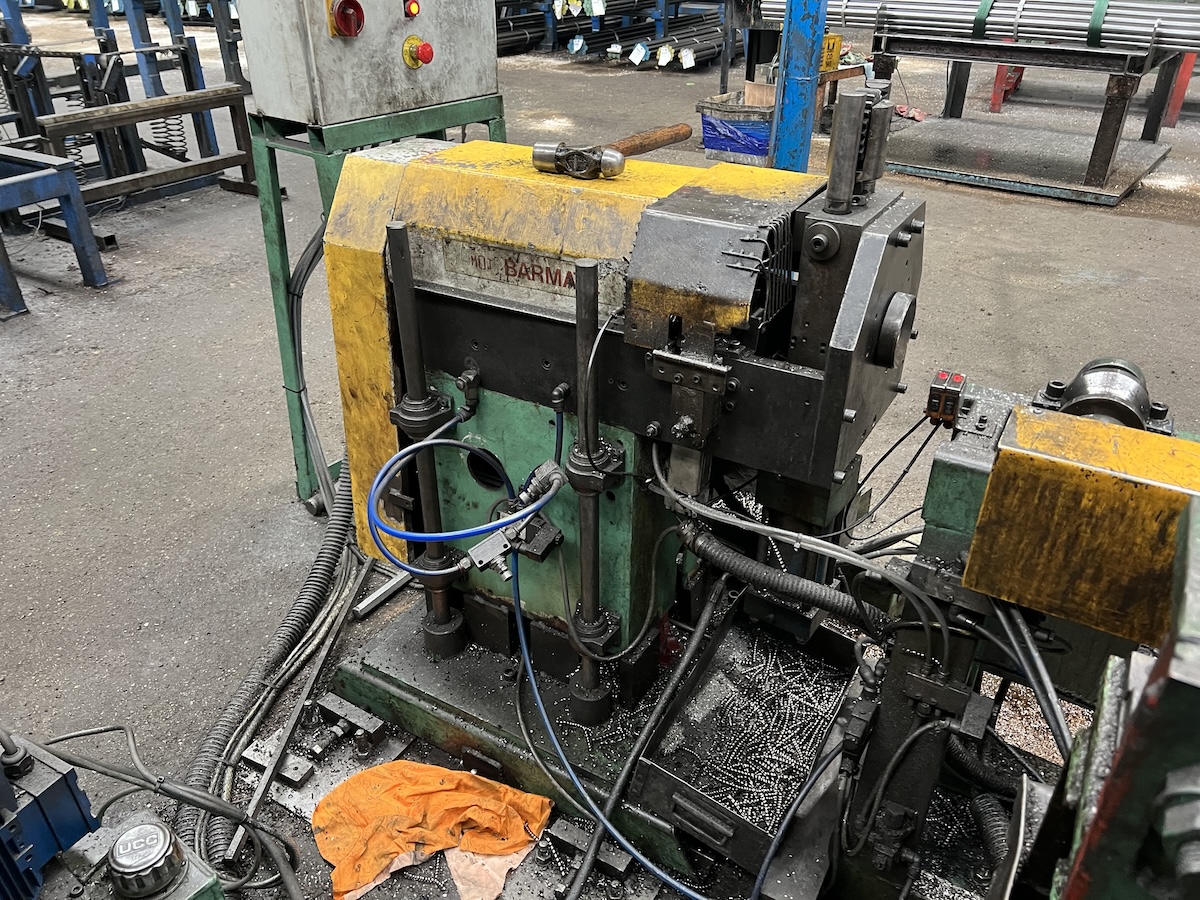

CHAMFERING

MOJ Barmatic

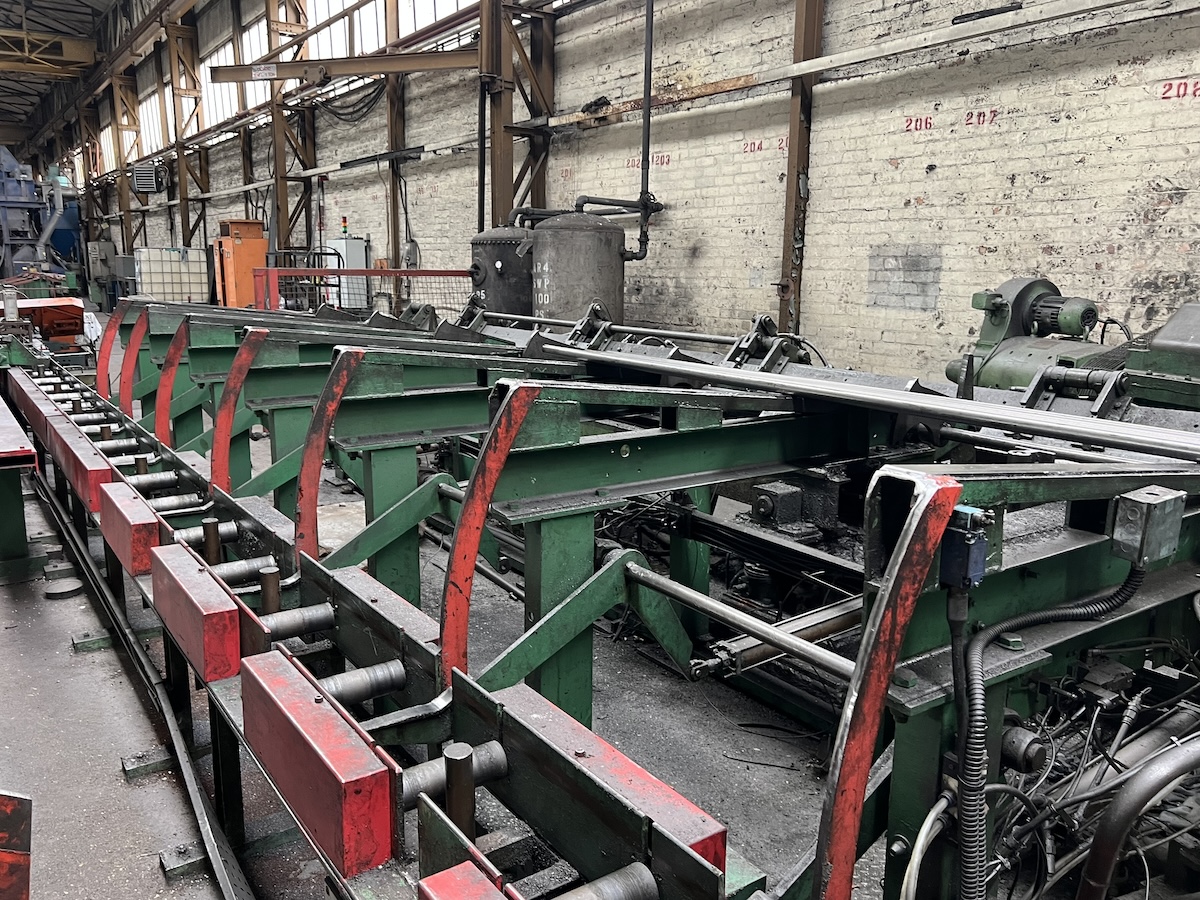

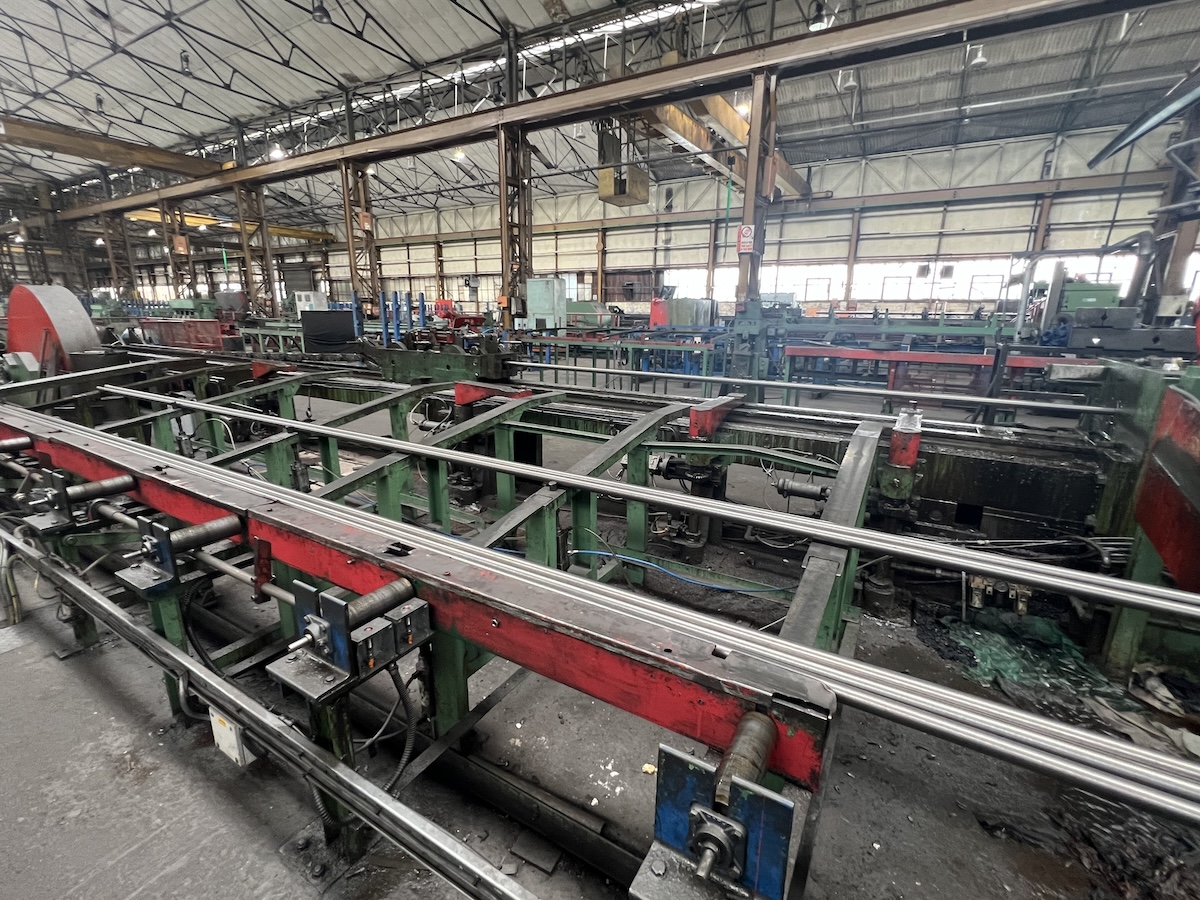

Bar Storage Racks and Feed Tables
